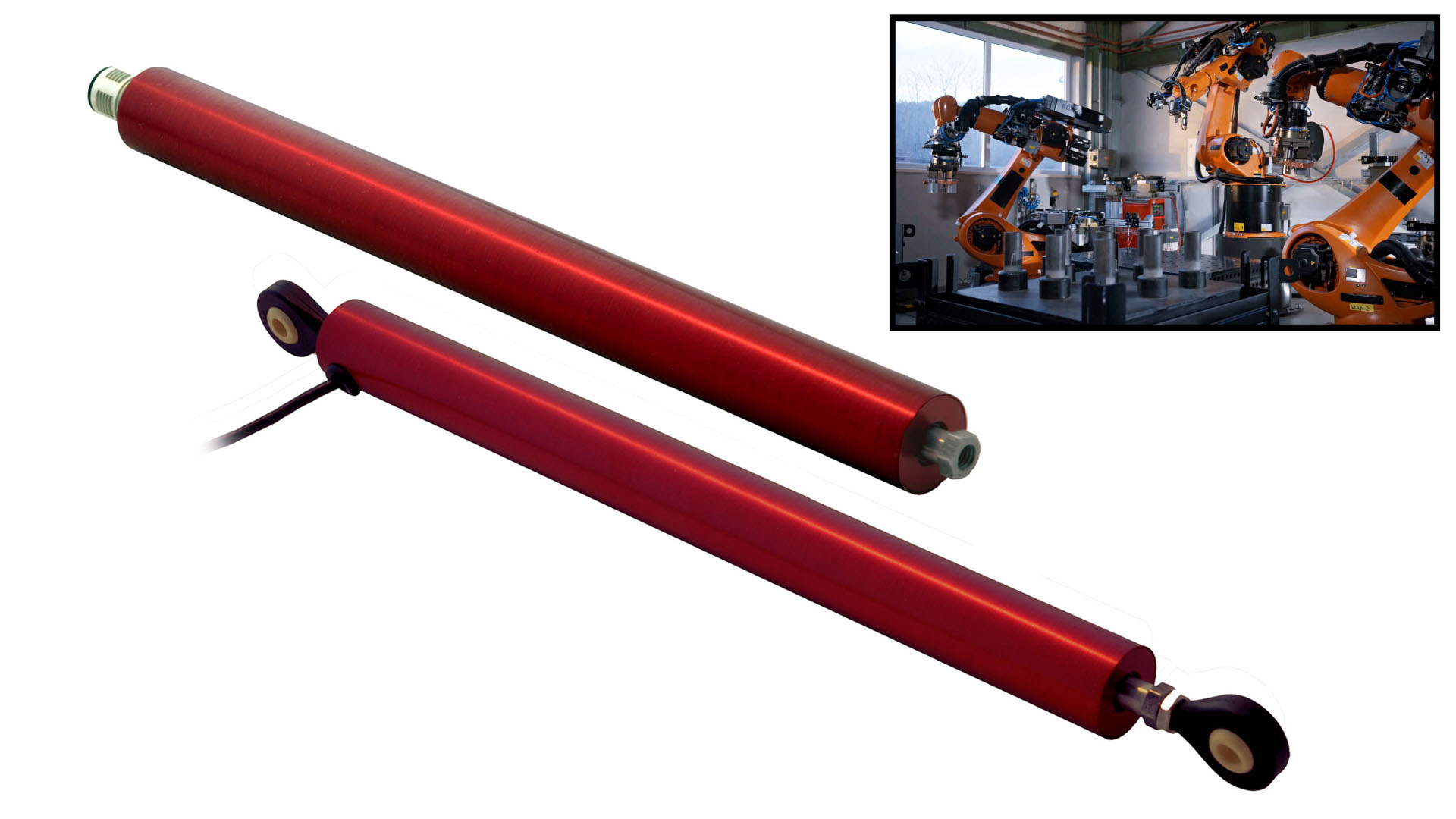

LR-19 SERIES LINEAR POSITION SENSOR
Ideal for Factory Automation, Custom Machinery, Drones, & OEMs
Long Lasting, Contactless Inductive Sensors
The LR-19 series inductive linear position sensors by Alliance Sensors Group are contactless devices designed for factory automation and a variety of industrial or commercial applications such as motorsport vehicles, automotive testing, solar cell positioners, wind turbine prop pitch and brake position, and packaging equipment. With their compact design, superior performance, and excellent stroke-to-length ratio, LR-19 sensors are ideal for both industrial testing laboratories and OEM applications.
LR-19 series sensors are offered in 6 full scale ranges from 25 to 200 mm (1 to 8 inches). Operating from a variety of DC voltages, these sensors offer a choice of four analog outputs and all include ASG’s proprietary SenSet™ field recalibration feature. LR-19 series products are available with axial cable or connector terminations, or with a radial exiting cable and two swivel rod eye ends for easy installation.
The LR series also includes a larger body version, the LR-27 for those applications needing a heavier duty unit.
- LVIT Technology™ (Linear Variable Inductance Transducer)
- Contactless Operation Prevents Internal Wearout from Dithering or Rapid Cycling
- Excellent Stroke-to-Length Ratio
- Proprietary SenSet™ Field Adjustable Range Scaling
